The Alaska Department of Environmental Conservation in August and September 2012 sampled eight drinking water wells belonging to eight small businesses within a half mile of the former Arness Septage disposal site in Nikiski. One of the eight wells showed detections of two chlorinated solvents. Three of the sample results from that well were below DEC’s groundwater cleanup level, but one was slightly above (see table, below) for TCE, or trichloroethylene, a solvent used for cleaning metal parts.
DEC, however, considers it unlikely that contamination originating from the Arness Septage site is impacting any of the wells that were sampled, based on water system sampling that has been done to date.
A second drinking water well out of the eight showed detections of Freon in two of the samples, but those detections are well below DEC’s groundwater cleanup level. No contaminants were found in the remaining six of the eight wells.
The 10-acre Arness Septage disposal site was used from the late 1970s to the mid-1980s to process waste, including septage (the partially treated waste from septic tanks), oily waste water and bilge waste.
DEC has asked the Arness property owner to do a groundwater elevation survey to establish the ground- water flow direction,and to install additional monitoring wells on the property.
Along with determining the direction of groundwater flow, the work ahead includes defining the extent and magnitude of the groundwater and soil contamination, and determining the size and borders of the groundwater contamination plume.
|Well No. 7||8-6-12||ND||ND||0.0007 ppm|
|Well No. 7||9-19-12||ND||ND||0.00055 ppm|
|Well No. 20||8-6-12||0.00432 ppm||0.00284 ppm||ND|
|Well No. 20||9-19-12||0.00558 ppm||0.00239 ppm||ND|
|Regulatory Level||0.005 ppm||0.2 ppm||11 ppm|
- The abbreviation "ppm" stands for parts per million – one part contaminant to one million parts water. PPM is the same as milligrams per liter, which is abbreviated as mg/L.
- The abbreviation “ND” stands for not detected.
- TCE is trichloroethylene.
- TCA is 1,1,1-trichloroethane.
- Freon-11 is a type of Freon, a chemical refrigerant. (DEC table)
The Arness family leased the property to an operator who ran the site as a septage disposal facility from May 1979 to May 1984. Bilge water, oily waste water and septage were processed at the site.
A local waste disposal firm, Alaska Environmental Industries, or AEI, operated the site beginning in January 1982. AEI offered services to oil exploration, production and development companies that included providing vacuum trucks and doing waste disposal, tank cleaning, and oil and chemical cleanup. The company also did heavy equipment sales, service and rentals.
After observing the site from the air in the fall of 1985, DEC staff conducted waste characterization sampling of some leaking drums, and identified hydrocarbons and methylene chloride as contaminants. Hydrocarbons are components of fuel, and methylene chloride is used as an industrial solvent and paint stripper.
The operator and landowner burned the drum contents and took the crushed drums to the landfill.
In September 1988, the site assessment work included (1) installing a single groundwater monitoring well to a depth of 135 feet; (2) geophysical surveys (magnetometer and ground penetration radar) to detect buried metal objects; and (3) drilling and sampling four soil borings to a depth of 30 feet. In one soil boring (BH-4 in the blue diagram below), workers encountered visual hydrocarbon staining that prompted additional excavation. In the area near another soil boring, BH-3, the geophysical survey data also prompted additional cleanup excavation.
Soil samples taken during the excavation work showed detections of TCE, TCA (1,1,1-trichloroethane, which is used as a solvent, among other things), and PCE (tetrachloroethylene, also called PERC, a chemical used for metal degreasing and dry cleaning).
The layout of what the Arness Septage site looked like in 1988, along with the boring hole locations, is shown in this September 1988 drawing by a DEC contractor. (DEC file)
In 1989, DEC directed the landowner to remove contaminated soils in the area of the leach fields (also known as the East Pit), the leaking drum area (the West Pit) and a buried drum burn residue area (the North Ditch). The majority of the excavated contaminated soils and sludge from multiple septage disposal systems were ultimately landspread over roughly three acres of the 10-acre property. Landspreading (PDF) is a treatment for contaminated soil.
The U.S. Environmental Protection Agency’s Superfund Program evaluated the site and issued a “No Further Action” determination under that program in October 1990.
The 135-foot-deep groundwater monitoring well mentioned above had been sampled four times between 1988, when it was installed, and 2004, when it was last sampled. In each of those samples, the TCA level was between 0.006 parts per million (or milligrams per liter) and 0.019 parts per million – concentrations that are well below DEC’s groundwater cleanup level of 0.2 parts per million.
In 2006, the landowner began working with a local engineering firm to develop a plan for more cleanup work at the site. The plan, however, wasn’t implemented, and since then, no additional work has been done on the Arness Septage site.
Recently, an oilfield service company, AIMM Technologies Inc., applied for a permit from DEC’s Solid Waste Program to dispose of oilfield wastes in a proposed monofill on a 10-acre parcel adjoining and southwest of the Arness Septage site property. The location of the proposed monofill raised questions and concerns among the public about the potential impacts to the environment from the Arness property.
AIMM installed six groundwater monitoring wells to satisfy the requirements of the Solid Waste Program’s permit application. Four of the six were installed in October 2011; samples from those wells show no detection of chlorinated solvents or hydrocarbons. The other two wells were drilled in the last few months; those haven’t been sampled yet.
AIMM’s consultant and DEC believe that the groundwater flows southwest under the area of the proposed monofill. Based on that, the AIMM wells may be downgradient from the Arness Septage site, but that depends on the groundwater flow direction under the Arness property. And that can’t be determined until, as mentioned earlier, an elevation survey is completed, and an additional monitoring well or wells are installed on the Arness property.
A Summary of What’s Been Found

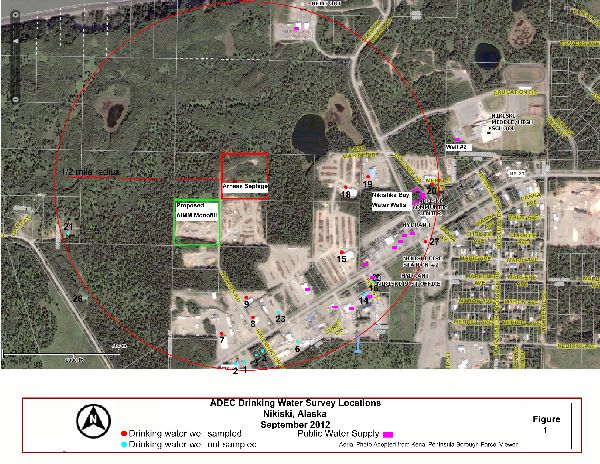

The eight drinking water wells that were sampled in August and September 2012 are shown by red dots in the diagram (see photo diagram, top).
TCE at a level slightly above the regulatory level of 0.005 parts per million was detected in one of two samples from well No. 20. TCE below the regulatory level and TCA below the regulatory level were also detected in well No. 20. That well is next to the Nikishka Bay Utilities water supply wells, which have been known to be contaminated with PCE and TCA since the late 1980s. The source of PCE is believed to originate from a dry cleaning facility that closed in the 1960s. (Nikishka’s water is treated with a carbon filtration unit that filters out chlorinated solvents – in this case, the PCE and TCA. The raw water and treated water are tested annually.)
Freon (Freon-11 or trichlorofluoromethane, a chemical refrigerant) was detected below the regulatory level in both samples from well No. 7. That well had nondetections, or NDs, for TCE and TCA.
The regulatory levels for contaminants are set out in the Alaska public drinking water standard (18 AAC 80) and Table C of the Alaska groundwater cleanup levels (18 AAC 75).
Please note that this site summary is subject to change. It will be updated as more results and/or information become available to DEC.
